Standard Eccentric 2Way

Description

⚡The crown jewel of a 40-year engineering legacy, the 2Way is the most advanced, versatile upright cycling system available for complex muscle mechanics and athletic optimization.

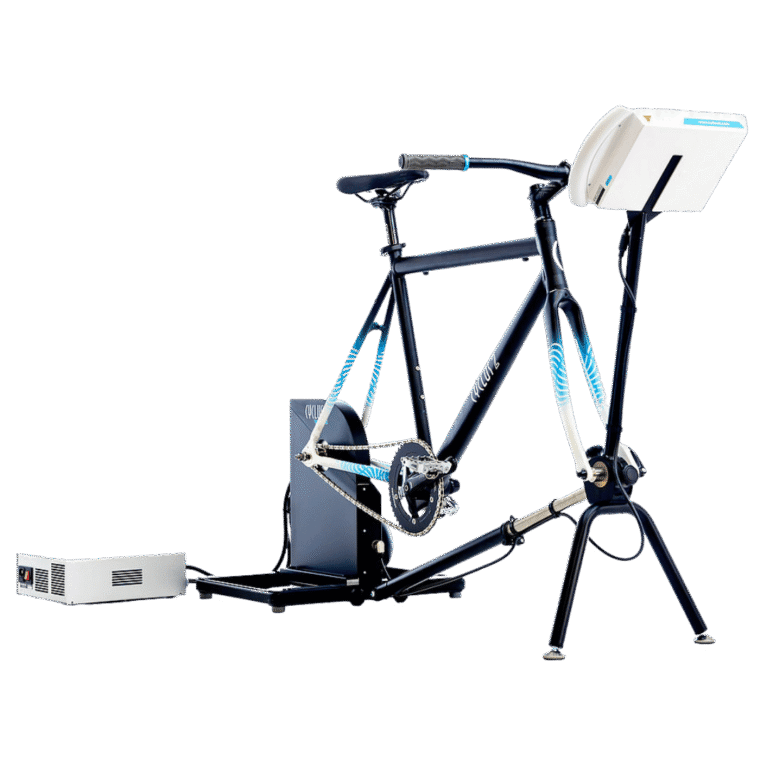

⚡By mounting their own bicycle frame, athletes and researchers can seamlessly switch between forward and backward rotations, shifting instantly between eccentric and concentric loads on the exact same device.

⚡A robust 2000W motorized drive system allows for unparalleled isokinetic concentric training and the precise measurement of extreme physiological variables across fundamentally different loading types.

⚡Comprehensive data connectivity ensures seamless integration with third-party diagnostic and CPET software, making it the ultimate biomechanical research tool for advanced physiology labs.

Specifications

📋 Performance Specifications

🔹 Power Resistance: 20 W to 1,000 W (Optional upgrade to 2,000 W).
🔹 Power Accuracy: ±4 Watts (≤100 W) / ±4% (>100 W).
🔹 Direction of Rotation: Bidirectional (Forward Concentric & Backward Eccentric).

✨ Load Modes & Testing Algorithms

🔹 Load Modes: Eccentric Power, Eccentric Torque, Eccentric/Concentric Isokinetic, and Mixed forward/backward load profiles.
🔹 Preloaded Tests: Incremental, Wingate, Max Strength, Max Cadence, PWC-Test.

✨ Connectivity, CPET & External Integration

🔹 Standard Interfaces: Bluetooth Low Energy (BLE 5.2), Ethernet (10/100 Mbit), 2x USB 2.0, RS232.
🔹 Optional Wireless: WLAN (802.11g).
🔹 Protocols: Bluetooth FTMS, Ergoline (RS232/Winsocket), Cyclus2 Protocol (RS232/Winsocket).
🔹 CPET / ECG Compatibility: Fully compatible for external control via CPET (Spirometry) and ECG systems.
🔹 Training Platform Compatibility: Integrates natively with Zwift and other FTMS platforms.
🔹 Sensor Compatibility (BLE/ANT+): Heart Rate Monitors, VO2 Master Pro, MOXY, CORE, Powermeters, Lactate Scout, Lactate Express.
🔹 USB Peripheral Compatibility: USB Flash Drives, USB Keyboards, USB Printers (PCL3/PCL5), Handle Bar Switches.

⚙️ Drive & Hardware Specifications

🔹 Drive: 13T Single-speed sprocket.
🔹 Dimensions & Weight: 170 x 50 cm setup area / 40 kg.
🔹 Maximum Power Consumption: 1300 Watts.

✨ Accessories

🔹 Required: Desktop power supply / Emergency Stop Button.
🔹 Optional Specific Accessories: Eccentric TwoWay Upgrade 2022 (if upgrading standard eccentric) / Cyclus2 Diamant eccentric frame / Cyclus2 Wave eccentric frame.
🔹 Optional General Accessories: Wi-Fi module / SyncInterface / Transport case / Floor mats / HR Transmitters.

Software

✨ Cyclus2 Software & Interface Specifications

Note: These interface specifications are universal across all Cyclus2 Concentric and Eccentric models.

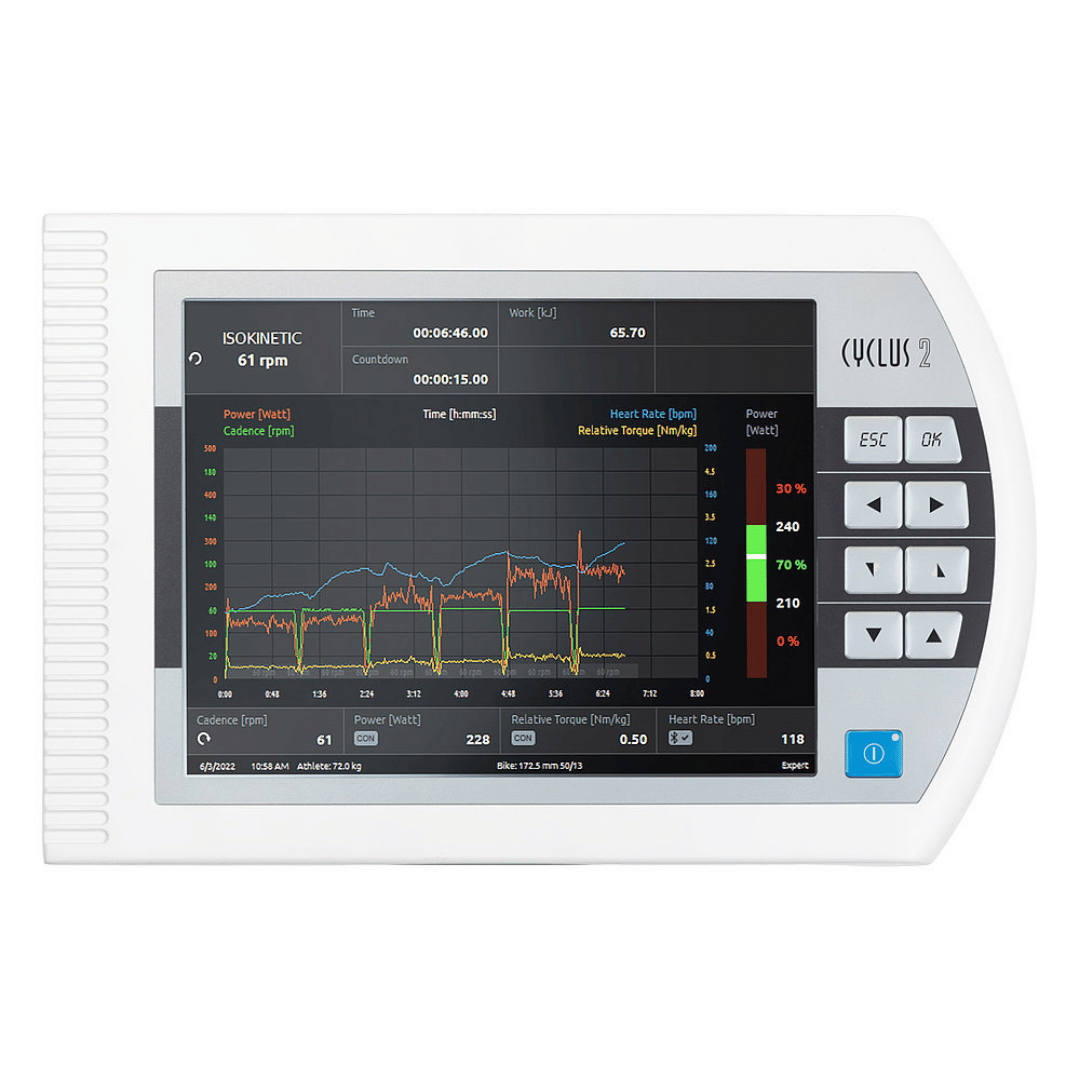

🔹 Control Interface: High-resolution 10.4-inch Color Display featuring an intuitive graphical user interface.
🔹 Network & Control: Supports VNC for Remote Control and Screen Sharing via PC, FTP for data access, and direct connection to Network Printers (PCL).
🔹 Integrated Testing: Comes pre-loaded with the Incremental Test, Wingate Anaerobic Test, Maximum Strength Test, Maximum Cadence Test, and PWC-Test, complete with automatic professional evaluations.

🆓 Customization

Features a built-in Load Profile Editor and Generator for freely programmable, automated training sessions.

🔹 External Integration: Fully controllable via external CPET (Spirometry) and ECG systems. Compatible with external training platforms like Zwift via Bluetooth FTMS.
🔹 Data Logging & Export: Continuous high-resolution data recording at selectable intervals. Native export formats include PDF, TIFF, CSV, and FIT for seamless scientific analysis.
🔹 Sensor Compatibility: Native Bluetooth Low Energy (BLE 5.2) and ANT+ connectivity. Supports Heart Rate Monitors, Powermeters, MOXY, VO2 Master Pro, CORE body temperature, Lactate Scout, and Lactate Express.
🔹 Languages Supported: DE, EN, FR, ES, IT, JP, PT, RU.
