⚡Leveraging 40 years of technological innovation, this semi-recumbent ergometer is engineered for clinical rehabilitation, senior mobility research, and non-cyclist cardiovascular testing.
⚡While it utilizes a fixed, highly comfortable recumbent seat, its versatility is highlighted by a vertically adjustable crank axis that allows for highly targeted lower-limb muscle activation based on the patient’s specific needs.
⚡The highly accurate braking system safely manages a wide spectrum of max power outputs, perfectly adapting to both early-stage rehabilitation patients and rigorous comparative sports science studies.
⚡Featuring outstanding connectivity options, it integrates flawlessly with standard clinical CPET and ECG monitors, providing a secure and data-rich platform for advanced medical diagnostics and cardiovascular recovery.
🔹 USB Peripheral Compatibility: USB Flash Drives, USB Keyboards, USB Printers (PCL3/PCL5), Handle Bar Switches.
⚙️ Hardware Dimensions & Power
🔹 Ergonomics: Integrated semi-recumbent seating with adjustable pedal crank height for targeted muscle group activation.
🔹 Power Supply: 100-240V AC / 50-60 Hz.
✨ Accessories
🔹 Required: Wall power supply.
🔹 Optional Specific Accessories: Airflow seat pad (washable) / EVA seat pad (wipeable).
🔹 Optional General Accessories: Wi-Fi module / SyncInterface / Handle bar switches / Floor mats / HR Transmitters.
Software
✨ Cyclus2 Software & Interface Specifications
Note: These interface specifications are universal across all Cyclus2 Concentric and Eccentric models.

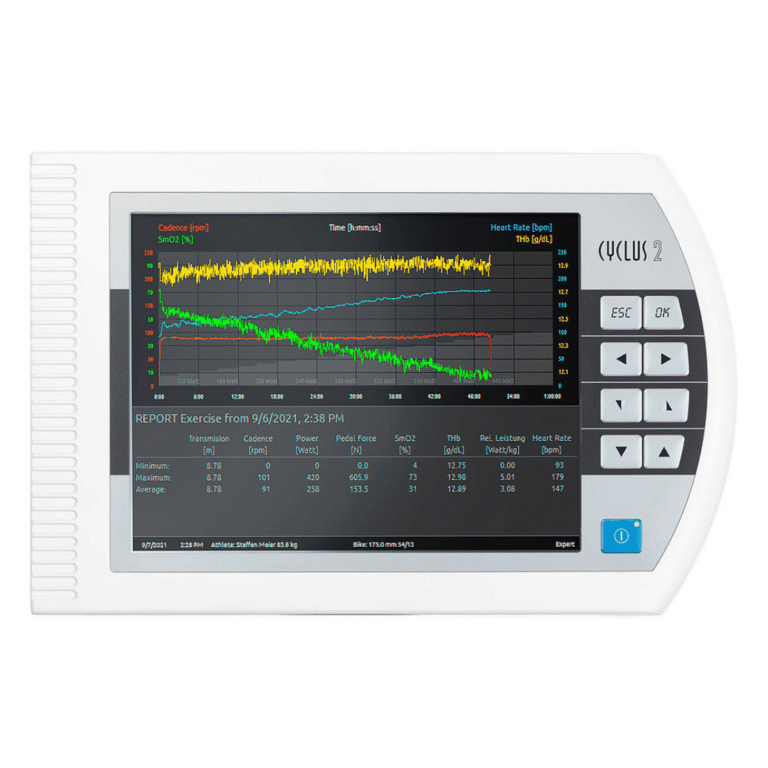

🔹 Control Interface: High-resolution 10.4-inch Color Display featuring an intuitive graphical user interface.
🔹 Network & Control: Supports VNC for Remote Control and Screen Sharing via PC, FTP for data access, and direct connection to Network Printers (PCL).
🔹 Integrated Testing: Comes pre-loaded with the Incremental Test, Wingate Anaerobic Test, Maximum Strength Test, Maximum Cadence Test, and PWC-Test, complete with automatic professional evaluations.
🆓 Customization
Features a built-in Load Profile Editor and Generator for freely programmable, automated training sessions.
🔹 External Integration: Fully controllable via external CPET (Spirometry) and ECG systems. Compatible with external training platforms like Zwift via Bluetooth FTMS.
🔹 Data Logging & Export: Continuous high-resolution data recording at selectable intervals. Native export formats include PDF, TIFF, CSV, and FIT for seamless scientific analysis.
🔹 Sensor Compatibility: Native Bluetooth Low Energy (BLE 5.2) and ANT+ connectivity. Supports Heart Rate Monitors, Powermeters, MOXY, VO2 Master Pro, CORE body temperature, Lactate Scout, and Lactate Express.
🔹 Languages Supported: DE, EN, FR, ES, IT, JP, PT, RU.
