✨ Engineered specifically for hyper-targeted, high-force assessment and rehabilitation of the knee joint.
🔹
Primary Technology: Heavy-duty hydraulic brake dynamometer optimized specifically for the biomechanics of the knee.
🔹 Extreme Force Capacity: Engineered to handle massive loads, accommodating a Maximum Concentric Force of 600 Nm and a Maximum Eccentric Force of 600 Nm (±5% accuracy).🔹
Model: Genu Iso (Medical Device Class I): Passive dynamometer supporting Concentric, Isometric, Isotonic (constant resistance), and Hydrodynamic (viscous resistance) modalities.🔹
Model: Genu Plus (Medical Device Class IIb): Active and passive dynamometer supporting Concentric, Eccentric, Mixed, Isometric, Isotonic, and Hydrodynamic modalities.🔹

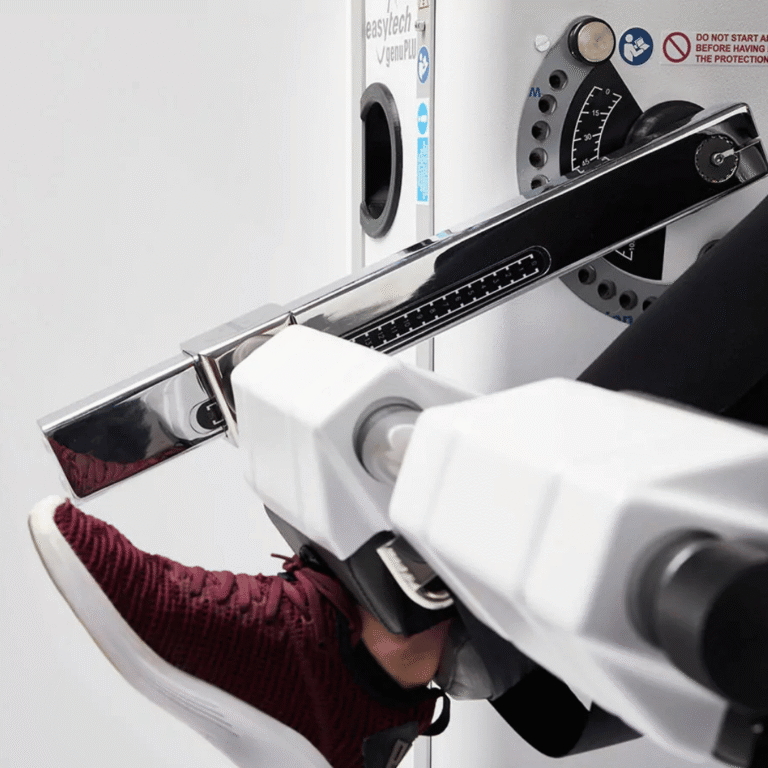

Ligament Protection: Features an optional Anti-Shear lever specifically designed to protect healing ligaments (like the ACL) during early-stage postoperative rehabilitation.🔹
Early-Stage Rehab Ready: Includes a highly controlled Passive modality suitable for immediate post-trauma mobilization.
🔹 Dimensions (Base Unit): 110 x 121 x 134h cm (Genu Iso) / 110 x 144 x 134h cm (Genu Plus).
🔹 Device Weight: 160 kg (Genu Iso) / 205 kg (Genu Plus).🔹
Minimum Operating Space: 200 x 270 cm required footprint.🔹
Maximum Patient Load: 135 kg.
