Complete Reactive Agility System

Description

⚡The Sportreact Reactive Agility System is a comprehensive testing and training platform designed to elevate speed, change of direction, and cognitive performance in dynamic, game-like environments.

⚡Centred around a versatile ecosystem of laser timing gates and intelligent reaction light pods, it facilitates a massive variety of protocols, ranging from standardized linear sprints (like the 40-yard dash) to complex, multi-directional assessments like the 5-10-5 Pro Agility test.

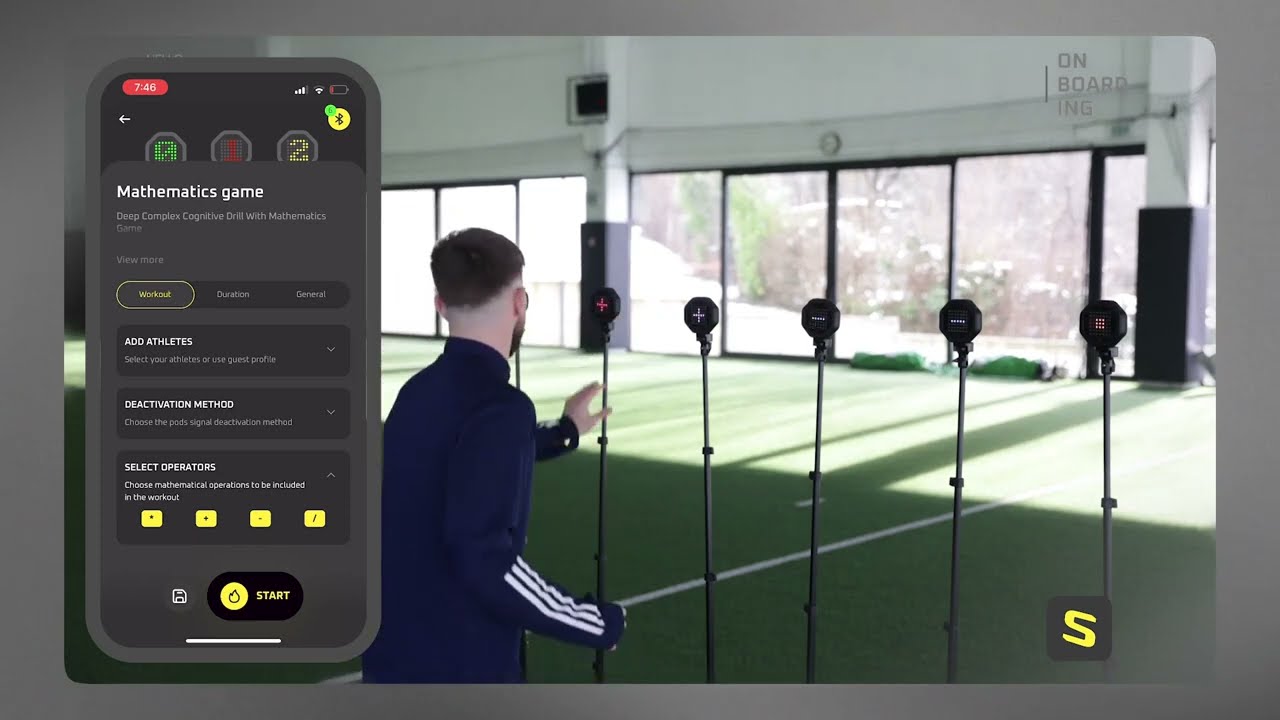

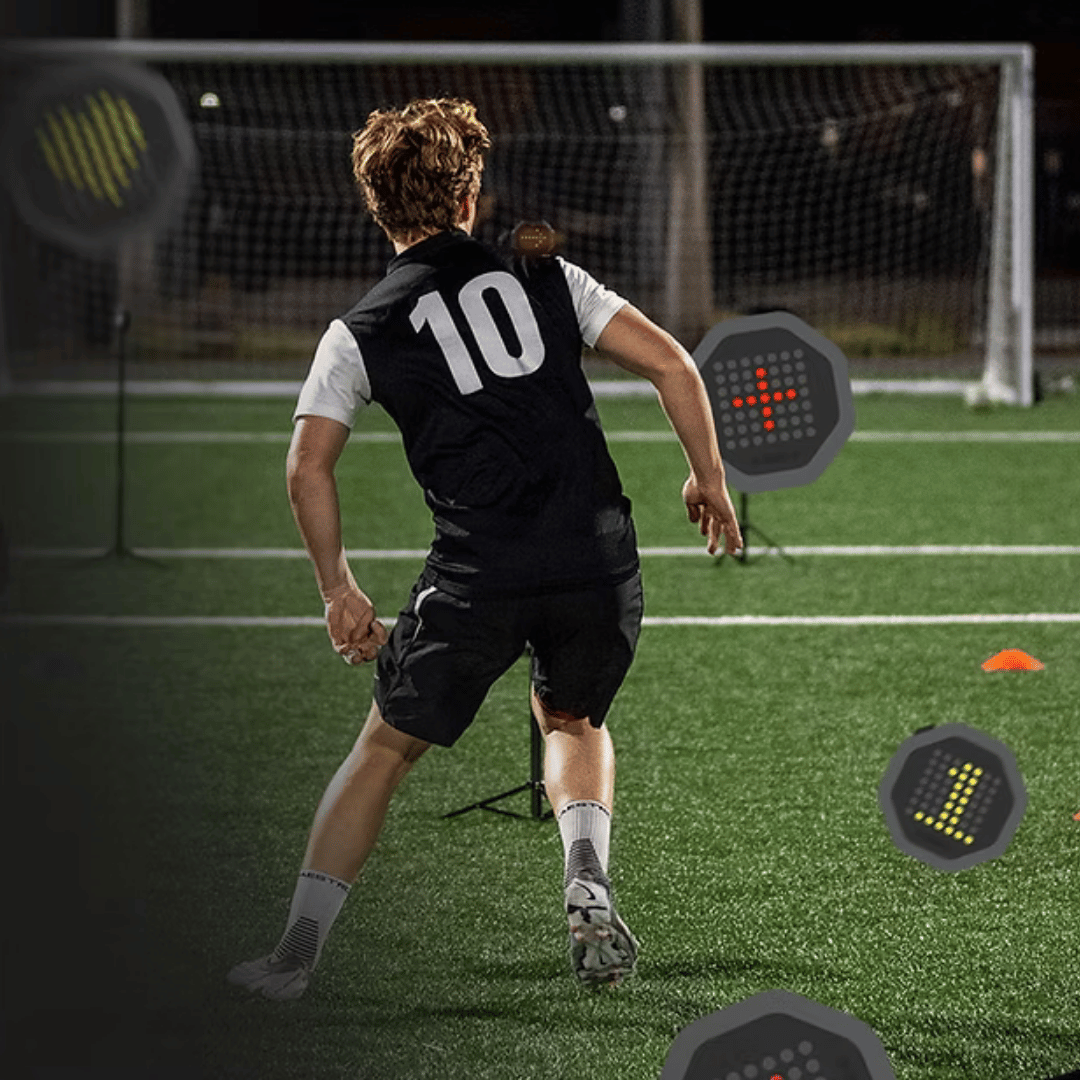

⚡By integrating unpredictable visual cues and cognitive dual-task loading—such as memory challenges, math problems, and directional arrows—the system forces athletes to process stimuli and react in real-time, effectively addressing the change-of-direction deficit.

⚡Backed by powerful analytics that track metrics like velocity, acceleration, force, and power, it is an ideal solution for high-performance training centers, sports academies, and rehabilitation clinics seeking evidence-based methods to enhance neuromuscular coordination and decision-making under pressure.

Specifications

Sportreact System Specifications

⚙️ The Sportreact system is a unified 3-in-1 performance testing sensor integrating timing, proximity, and touch-based reaction capabilities into a single compact platform.

✨ Core Technology & “1 Pod = 1 Gate” Feature

The advanced “1 Pod = 1 Gate” functionality is available with the Plus Subscription package.

🔹 1 Pod = 1 Gate Architecture: Each pod functions as a complete standalone timing gate.

🔹 No Reflectors Required: Eliminates secondary tripods, reflectors, and alignment-related setup errors.

🔹 Sunlight Immunity: Maintains accurate operation even under direct outdoor sunlight without optical interference.

🔹 3-in-1 Functionality: Combines timing gates, proximity-trigger deactivation, and physical touch reaction lights within a single device.

✨ Hardware & Sensor Specifications

🔹 Timing Precision: Accurate to 1/1000th of a second.

🔹 Timing Sensor (Infrared): Pod-to-pod signal detection range up to 10 meters.

🔹 Proximity Sensor (Time-of-Flight): Operates at 50 Hz with a 27° field of view for motion-triggered cue deactivation.

🔹 Touch Sensor (Accelerometer): Integrated 3-axis digital accelerometer.

🔹 Force Sensitivity: Adjustable sensitivity from 1.6g to 16g across 10 selectable levels.

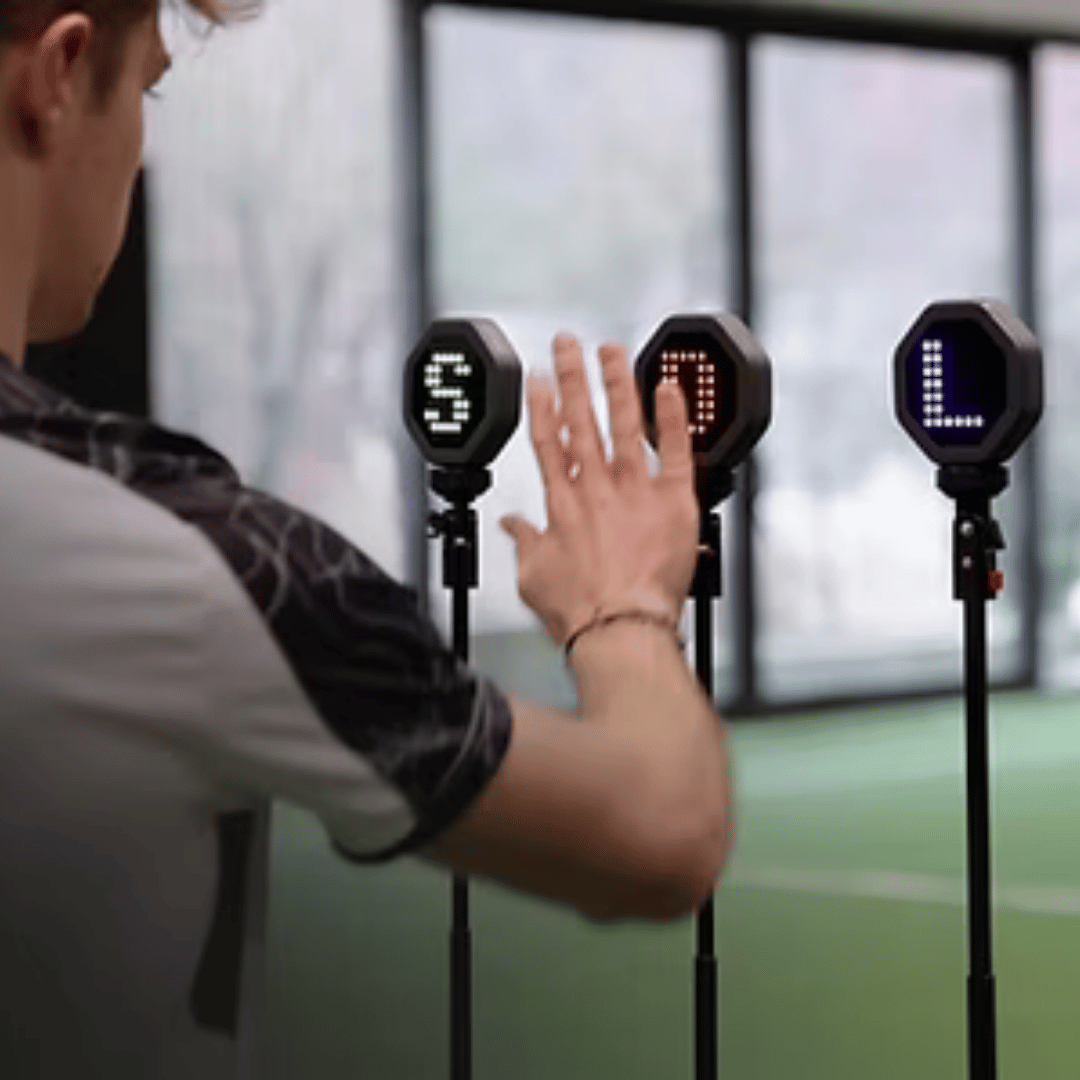

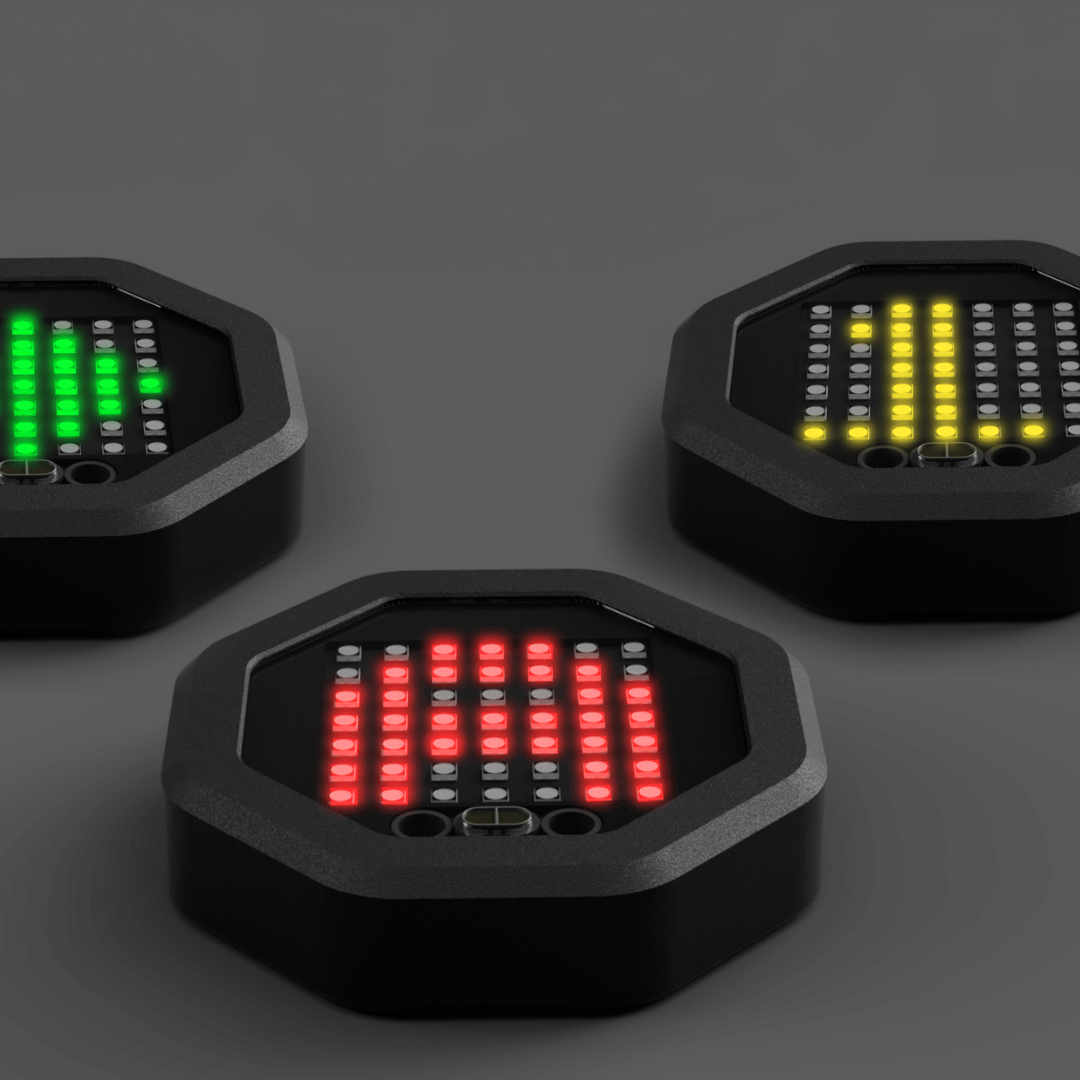

🔹 Display Screen: 7 × 7 RGB LED matrix display with 49 pixels.

🔹 Color Depth: 8-bit RGB spectrum support.

🔹 Visual Cues: Includes 231 predefined symbols including letters, numbers, arrows, and reaction indicators for cognitive and agility drills.

✨ Connectivity & Build Specifications

🔹 Protocol: Bluetooth Low Energy (BLE).

🔹 System Capacity: Supports up to 12 pods simultaneously, configurable as 12 reaction lights or 6 timing gates.

🔹 Inter-Unit Range: Up to 120 meters between the primary and furthest pod.

🔹 Mobile Range: Up to 30 meters between the primary pod and connected mobile device.

🔹 Battery Type: 3.7V 2500mAh rechargeable Li-Ion battery.

🔹 Battery Life: Approximately 8 hours active operation and 10 hours standby time.

🔹 Charging: Full recharge in approximately 3.5 hours via USB-C.

🔹 Enclosure Material: Durable Polyamide 12 nylon construction.

🔹 IP Rating: IP66 rated for dust protection and high water resistance.

🔹 Operating Temperature: 0°C to 35°C.

✨ Dimensions & Weights

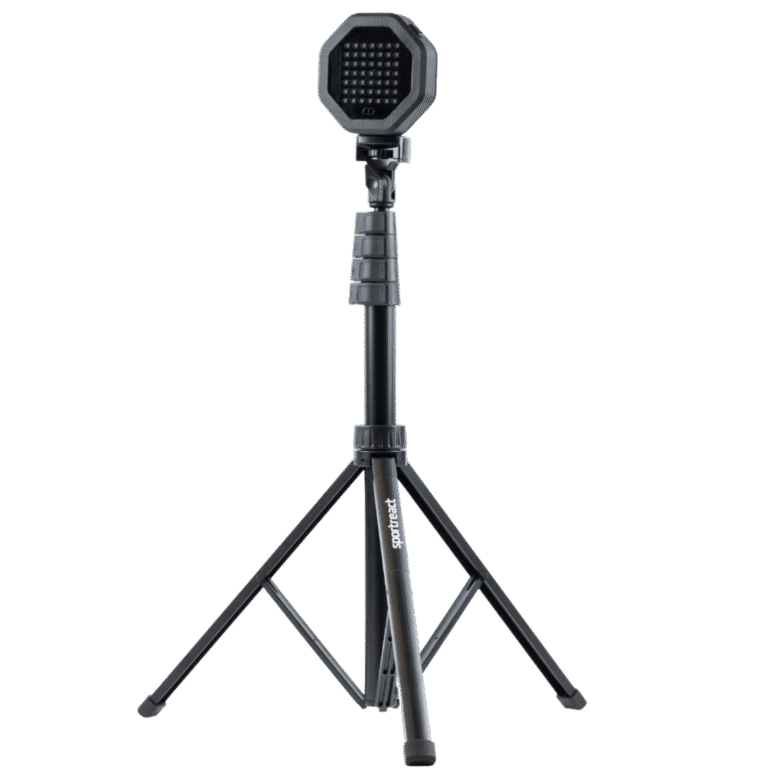

🔹 Pod Unit: 93 × 93 × 22 mm / 180 g.

🔹 Tripod Unit: 460 × 50 × 50 mm / 450 g.

🔹 Add-on Dock: 93 × 93 × 13 mm / 40 g.

🔹 Charger: 82 × 200 × 29 mm / 315 g.

🔹 Attachment Strap: 3000 mm adjustable strap length.

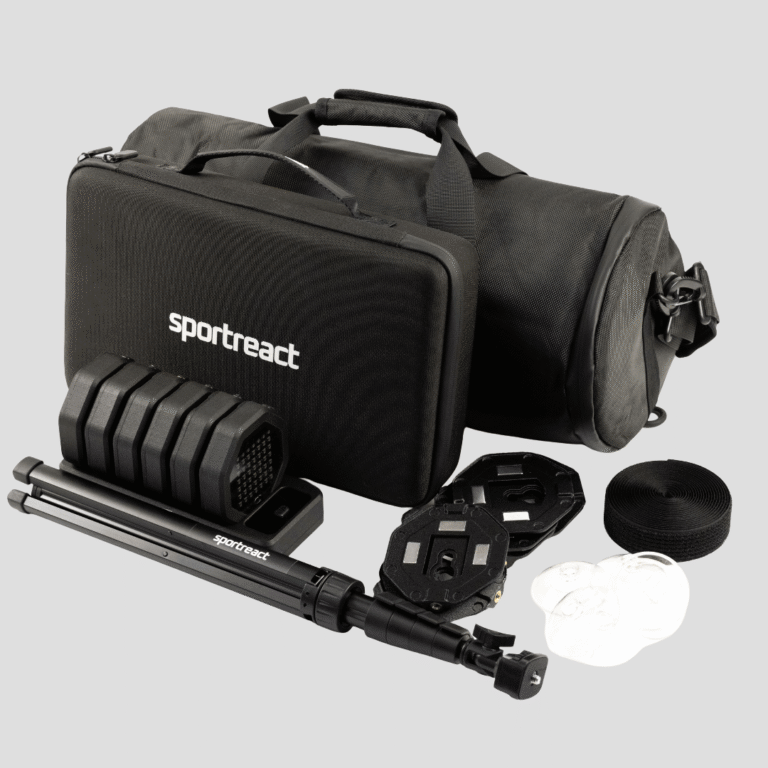

✨ Available Hardware Packages

🔹 Neo Kit (3 Pods): Includes 3 Pods, 3 Tripods, 3 Docks, 1 Strap, and 2 Carry Bags.

🔹 Core Kit (4 Pods): Includes 4 Pods, 4 Tripods, 4 Docks, 1 Strap, and 2 Carry Bags.

🔹 Lab Kit (6 Pods): Includes 6 Pods, 6 Tripods, 6 Docks, 1 Strap, and 2 Carry Bags.

🔹 Pro Lab Kit (12 Pods): Includes 12 Pods, 12 Tripods, 12 Docks, 2 Straps, and 4 Carry Bags.

Software

Sportreact Software Ecosystem

📋 Platform Compatibility: Compatible with iOS / iPadOS 12.0+, macOS 11.0+, and Android 5.0+ devices.

🔹 1. Free App Tier (Lifetime Access)

🔹 Cost Structure: 100% free access with no mandatory subscription fees for daily operation.

🔹 Drill Library: Includes access to 50 pre-built drill and reaction training templates.

🔹 Customization: Full ability to create and program fully customized exercise pathways and drill sequences.

🔹 Data Storage: Operates in read-only mode without historical data saving to athlete profiles.

🔹 Live Feedback: Provides instant rankings, scoreboards, and leaderboard displays directly within the application.

🔹 Metrics Tracked: Tracks core sprint timing and basic reaction time performance metrics.

🆓 Hardware Expansion: Additional pods can be added to the system at any time without software limitations or restrictions.

🔹 2. Plus App Tier (Paid Premium Subscription)

🔹 Data Storage: Save unlimited athlete and team testing data directly into dedicated client profiles.

🔹 Advanced Metrics: Calculates detailed kinematic outputs including Force (FRC), Power (PWR), Acceleration (ACC), and Velocity (VEL).

🔹 Expanded Library: Unlocks access to more than 200 specialized drill templates and complete training programs.

🔹 AI-Driven Insights: Automatically generates AI-assisted text interpretations and performance recommendations based on collected data.

🔹 Normative Benchmarking: Compare athlete performances against normative databases categorized by sport, age group, and gender.

🔹 Automated Group Testing: NFC “Scan & Start” wristband integration automatically logs athletes into drills and saves testing data instantly.

🔹 Advanced Visualizations: Analyze performances through radar charts, bar graphs, line graphs, and T/Z-score visualizations.

🔹 Professional Reporting: Generate and share structured PDF reports including Athlete Profiling Reports, Team Analysis Reports, and Combine Testing Reports.
