InsoleX RF (Smart Insoles)

Brochure
Inquire Now
Description
⚡The Cometa InsoleX RF is an advanced pressure-sensitive insole system equipped with an integrated IMU, designed to bring state-of-the-art resistive technology into dynamic biomechanical and gait assessments
⚡Centred around a robust 64-point sensor matrix, it moves beyond traditional foot-switch technology to capture precise foot morphology, weight distribution, and detailed centre of pressure (CoP) maps in real time
⚡By seamlessly synchronizing with Cometa’s WaveX receivers, the system allows users to perfectly correlate foot pressure data with muscle activation (EMG) and movement dynamics without lag, supported by up to 18 hours of battery life, individually calibrated sensors, and rapid-setup magnetic connectors
⚡It is an ideal solution for sports science research centres, rehabilitation clinics, and high-performance biomechanics labs looking to conduct comprehensive movement analysis and injury prevention strategies with true wireless freedom
⚙️ Hardware Specifications
  • 🔹 Technology: Resistive technology with 64 points, integrated IMU, individually calibrated.
  • 🔹 Sampling Rate: 100 Hz.
  • 🔹 Sampling Resolution: 8-bit / 16-bit.
  • 🔹 IMU: Up to 16g / 2000 dps.
  • 🔹 Compatibility: Synchronous with EMG and IMU signals from WaveX sensors.
  • 🔹 Internal Memory: Up to 11.5 hours of data.
  • 🔹 Data Download: Via Wi-Fi.
  • 🔹 Battery Life: 18 hours.
  • 🔹 Sensor Dimensions: 42 × 48.5 × 21.5 mm.
  • 🔹 Sensor Weight: 35 g.
  • 🔹 Accessories: Inductive Docking Charger / Double-sided tape.
🆓 InsoleX Software Features

Elevate your gait analysis and biomechanical tracking with the specialized InsoleX features within Cometa’s EMG & Motion Tools. Fully unlocked and 100% free for a lifetime with zero paid tiers, this software is engineered to sync effortlessly with Cometa’s 64-point resistive smart insoles. It provides deep analytical insights into foot pressure distribution, weight transfer, and movement dynamics without any recurring costs.

  • 🔹 2D & 3D Pressure Mapping: High-resolution 2D and 3D topographical visualization of foot pressure distribution.
  • 🔹 Detailed Sensor Maps: Real-time visualization of all 64 calibrated pressure points across the insole.
  • 🔹 Center of Pressure (CoP) Tracking: Accurate tracking and graphing of CoP for balance, stability, and postural assessment.
  • 🔹 Zonal Analysis: Independent analysis of toe, metatarsal, midfoot, and heel pressure regions.
  • 🔹 Comprehensive Gait Parameters: Automatic calculation of essential gait metrics for rehabilitation, injury prevention, and sports performance analysis.
  • 🔹 Custom Line Graphs: Real-time monitoring of pressure (kPa), contact area (%), and estimated force (N) with minimum, maximum, and average values.
  • 🔹 Integrated IMU Overlay: Synchronized visualization of 6-axis or 9-axis IMU data (up to 500 Hz) alongside pressure recordings and WaveX sensor data.
Categories: , Tags: , , Brand:
Main Video Thumbnail
Cometa | WaveX Wireless EMG System
Thumbnail
Now Playing
Thumbnail
Now Playing
Thumbnail
Now Playing
×

Upgrade Your Set-up with InsoleX RF (Smart Insoles) TODAY!!

Fill out the form below and our team will get back to you ASAP!
Ask for Quote

Related Products

Holter 3Ch

Incredibly reliable three channel Holter device is engineered for continuous ambulatory ECG recording

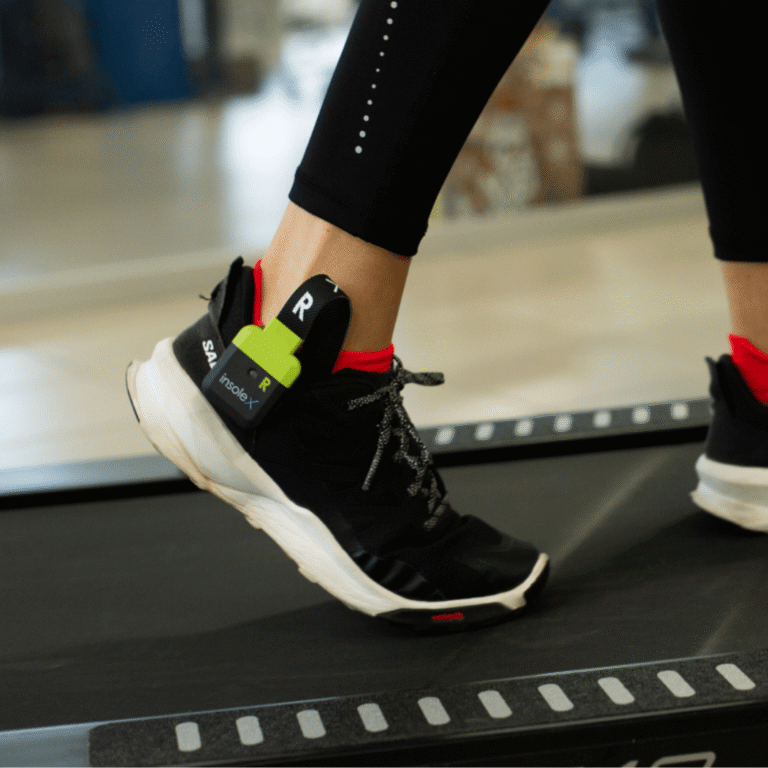

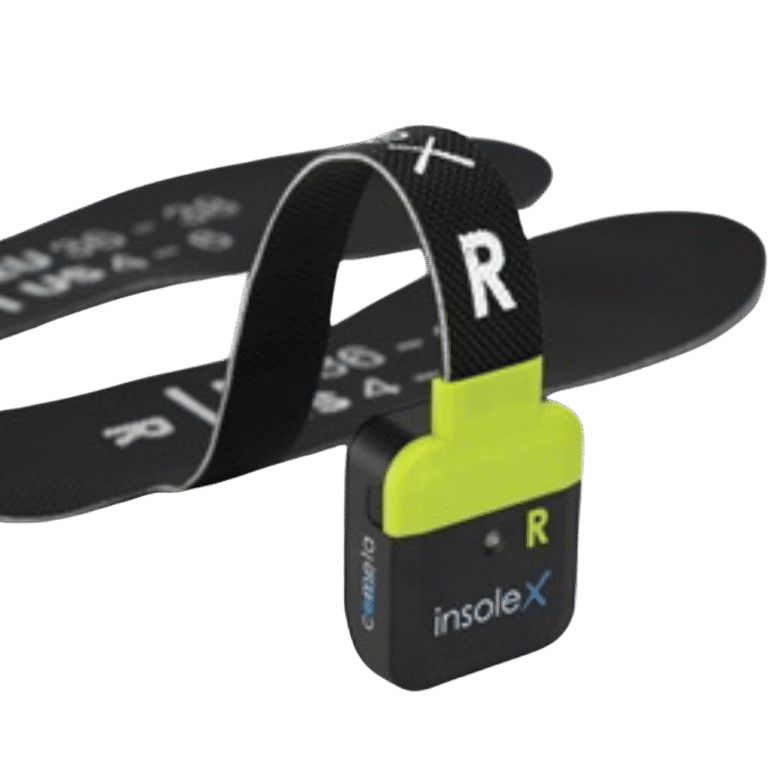

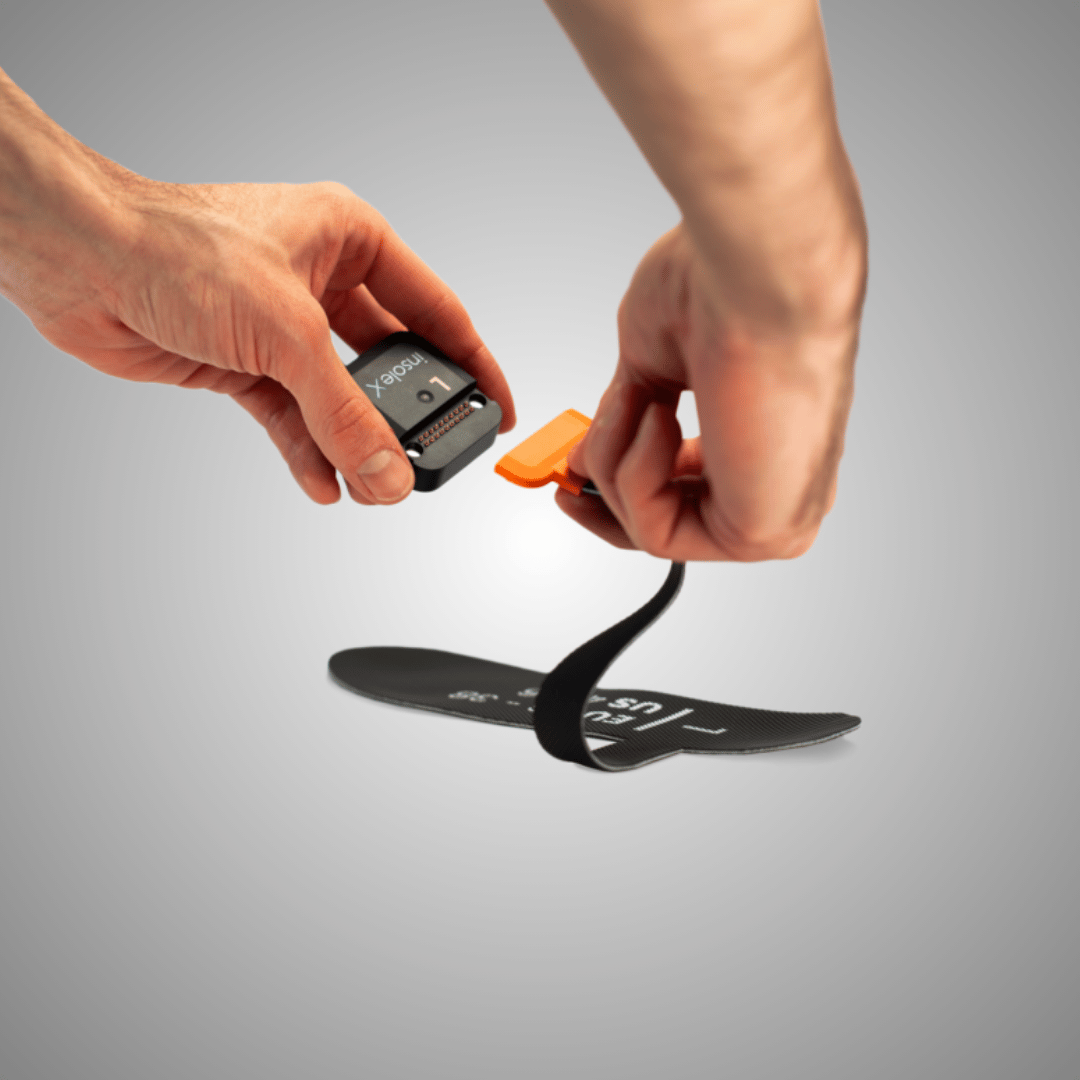

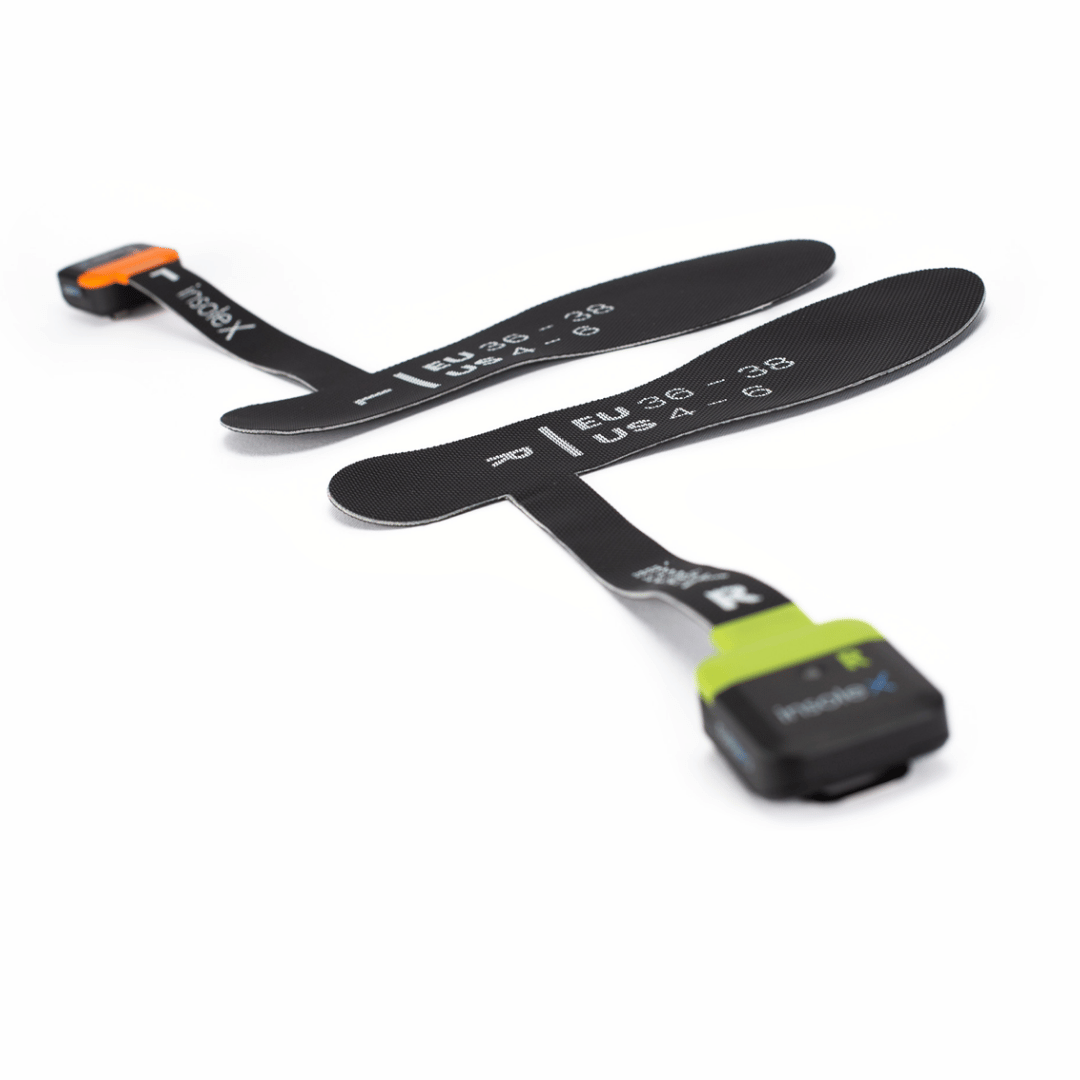

InsoleX BT (Smart Insoles)

Transform any space into a high-tech gait lab instantly with these plug-and-play, 64-point smart pressure insoles

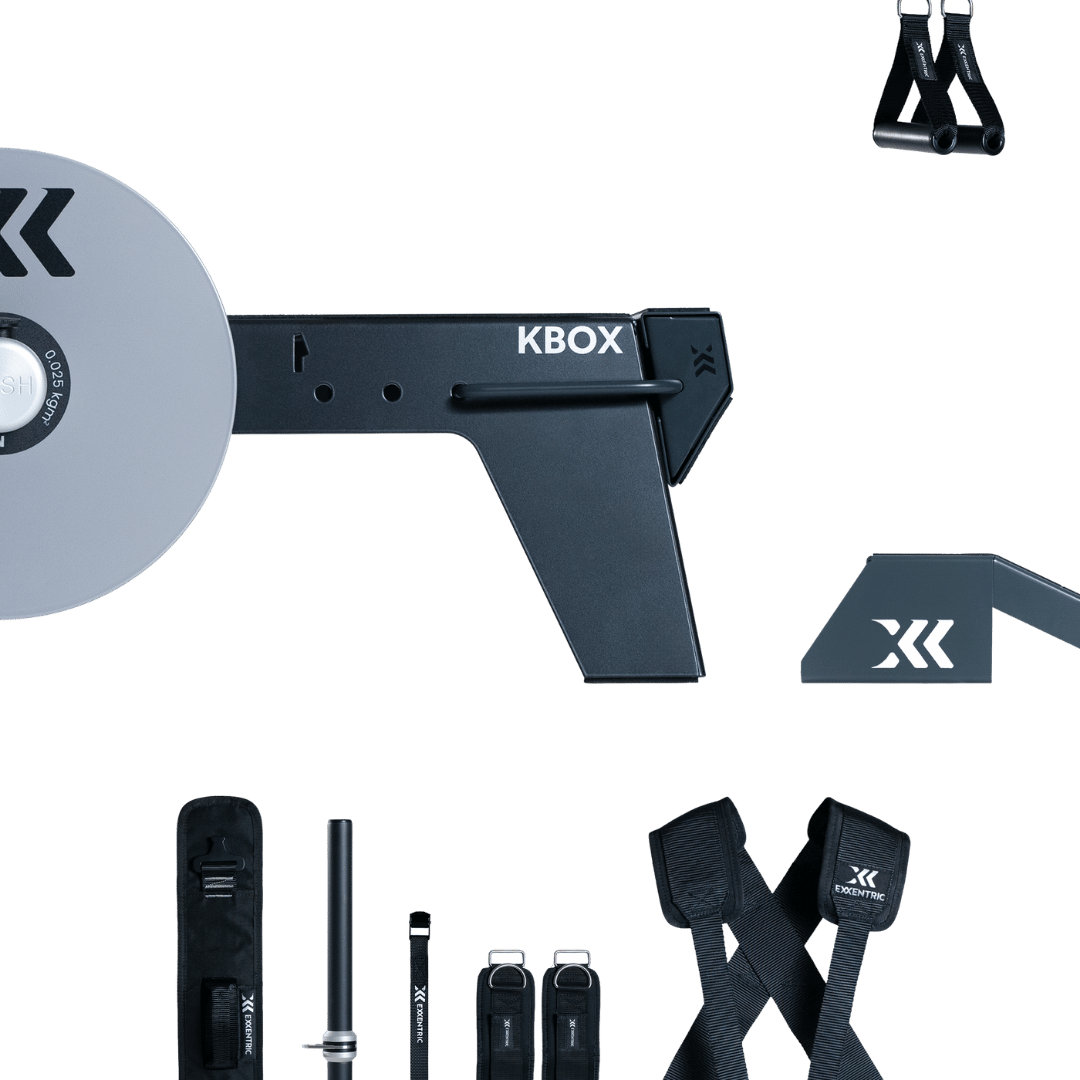

kBox Advanced System
