PicoX (EMG + IMU)

Description

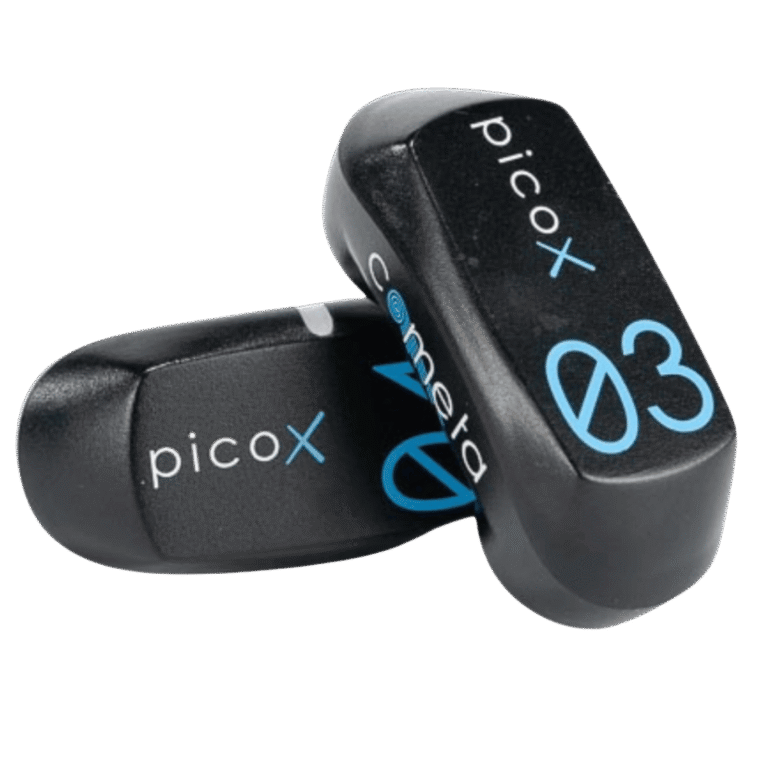

⚡The Cometa PicoX is a next-generation electromyography (EMG) and kinematic sensor, serving as a fundamental element of the advanced WaveX system.

⚡Built upon the highly usable architecture of its predecessor, the PicoX introduces a powerful new transmitter alongside a fully integrated IMU, allowing practitioners to capture high-fidelity muscle activity (at 2000 Hz) and 3D movement data (at 500 Hz) simultaneously or independently.

⚡By offering true “take it and place it” usability without the need for additional stickers or complex electrode distance measurements, it guarantees low-artifact signals with an extended 40-meter indoor range, 10 hours of battery life, and the ability to synchronize up to 36 channels seamlessly.

⚡It is an ideal, fast-setup solution for clinical gait labs, high-performance sports research, and biomechanics facilities where precise, artifact-free full-body or targeted walk analysis is required with unparalleled ease of use.

Specifications

⚙️ Hardware Specifications

🔹 EMG Sampling Rate / Resolution: 2000 Hz / 16-bit.
🔹 EMG Baseline Noise: 100 dB / >100 MΩ.
🔹 EMG Filters: 10 Hz High pass, 500 Hz Low pass.
🔹 Full IMU Sample Rate: Up to 500 Hz.
🔹 Indoor Range: Extended 40 meters indoor range.
🔹 Internal Memory: 8 hours of data.
🔹 Channels: Up to 36 synchronized channels.
🔹 Analog Output: Configurable 40 channels.
🔹 Battery Life: 10 hours.
🔹 Sensor Dimensions: 41 x 23 x 14 mm.
🔹 Sensor Weight: 9.5 gr.

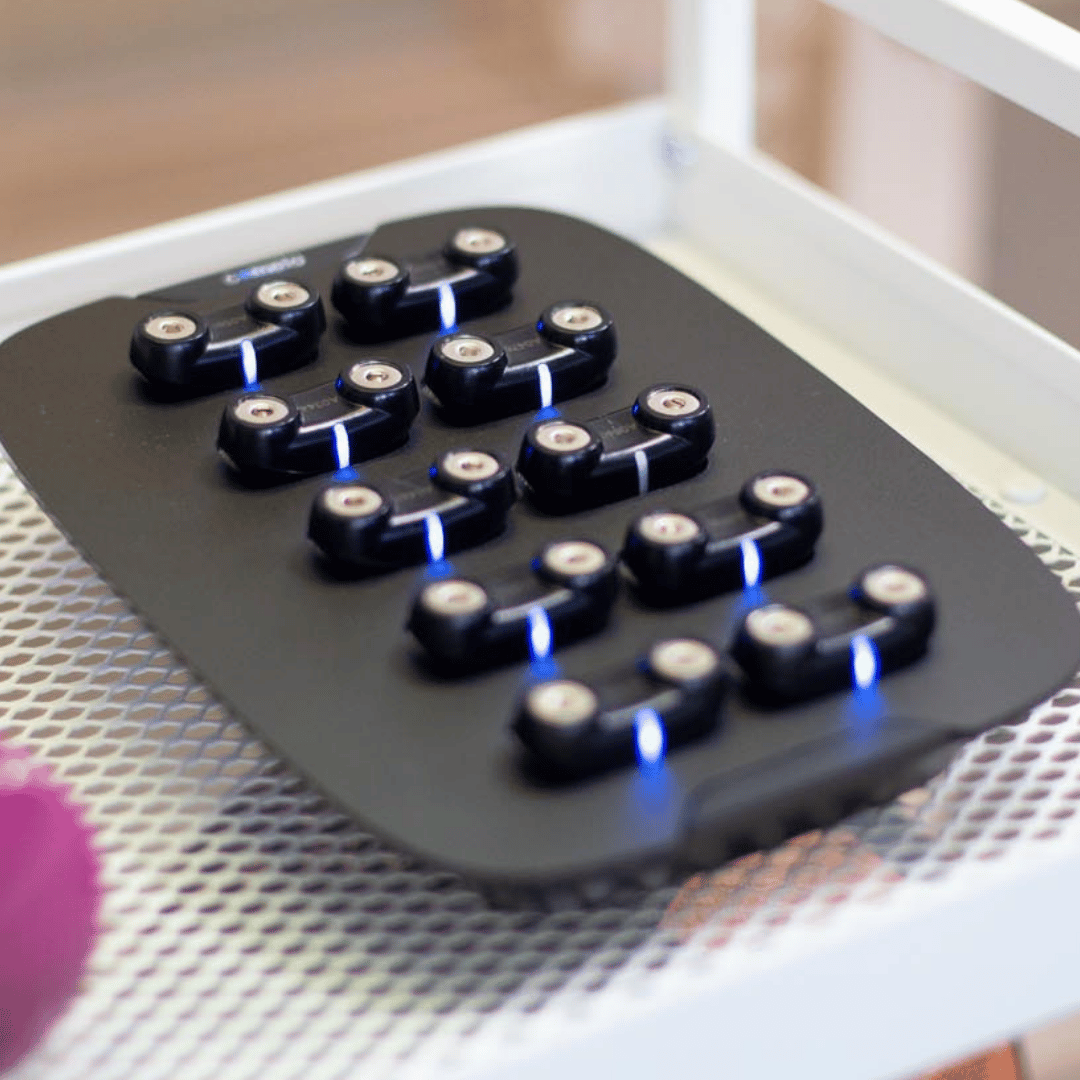

🔹 Accessories: Inductive Docking Charger / Pregelled disposable ECG electrodes / Double-sided tape.

Software

🆓 Cometa EMG & Motion Tools Software

Maximize your biomechanical research, sports performance tracking, and clinical assessments with Cometa’s EMG & Motion Tools software. Enjoy full access to all features with 100% free lifetime access, without paid tiers or subscription fees. Designed for seamless integration with Cometa EMG and IMU sensors including MiniX, PicoX, and TrackX, the software delivers accurate real-time data processing, visualization, and advanced motion analysis capabilities.

🔹 Real-Time Data Display: Live visualization of EMG muscle activity and IMU kinematics through an intuitive monitoring dashboard.
🔹 Comprehensive Signal Processing: Advanced processing tools including FFT, custom filtering, signal rectification, smoothing, and cycle/frequency analysis.
🔹 3D Kinematics & Joint Angles: Live 3D body visualization and joint angle estimation for detailed motion analysis using TrackX and IMU sensors.
🔹 Biofeedback Functionality: Integrated live biofeedback features for rehabilitation, neuromuscular training, and sports performance enhancement.
🔹 Synchronized Video Capture: Simultaneous recording and synchronization of USB or web camera video alongside physiological data streams.
🔹 Flexible Data Export: Export reports, processed data, and raw recordings in standard C3D and ASCII formats for third-party compatibility.
🔹 Plugin Compatibility: Open SDK and plugin architecture enabling custom software development and workflow expansion.
